audio chip: Realtek ALC897
audio output channels: 7.1 channels
batteries included: Yes
battery technology: Lithium-Manganese Dioxide (LiMnO2)
battery type: CR2032
battery weight: 3 g
bluetooth: Yes
bluetooth version: 5.3
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
cables included: SATA
category code: MBI
cncode: 84733020
country of origin: China
depth: 244 mm
displayport version: 1.2
displayports quantity: 1
ethernet lan: Yes
ethernet lan (rj-45) ports: 1
hdcp: Yes
hdmi ports quantity: 1
hdmi version: 2.1
headphone outputs: 1
height: 35 mm
maximum resolution: 4096 x 2304 pixels
microphone in: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
package depth: 270 mm
package height: 80 mm
package weight: 1807.5 g
package width: 335 mm
parallel processing technology support: Not supported
power source type: ATX
product colour: Brown
products per shipping (inner) case: 1 pc(s)

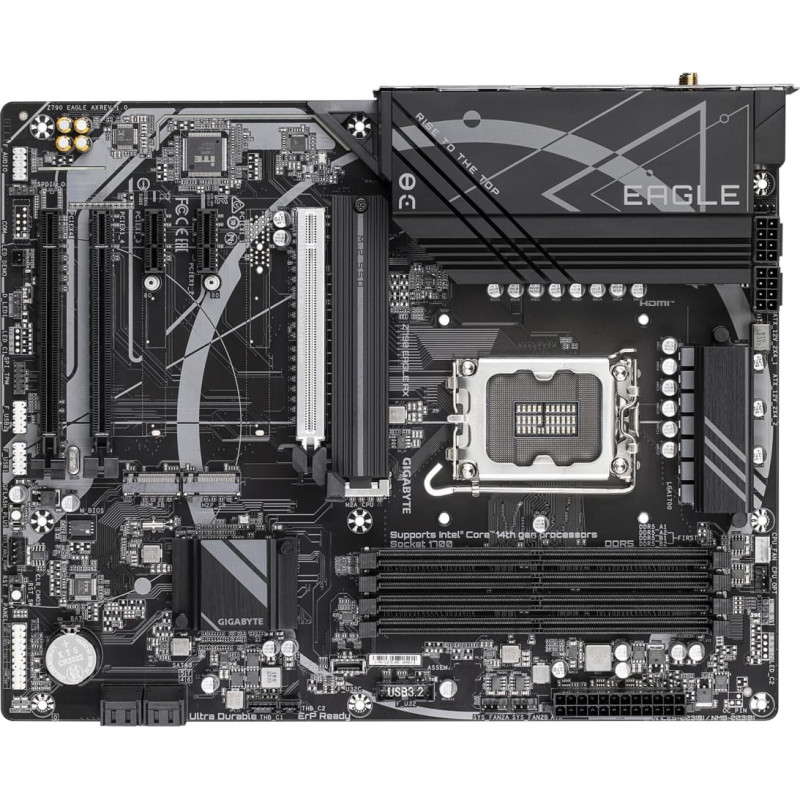

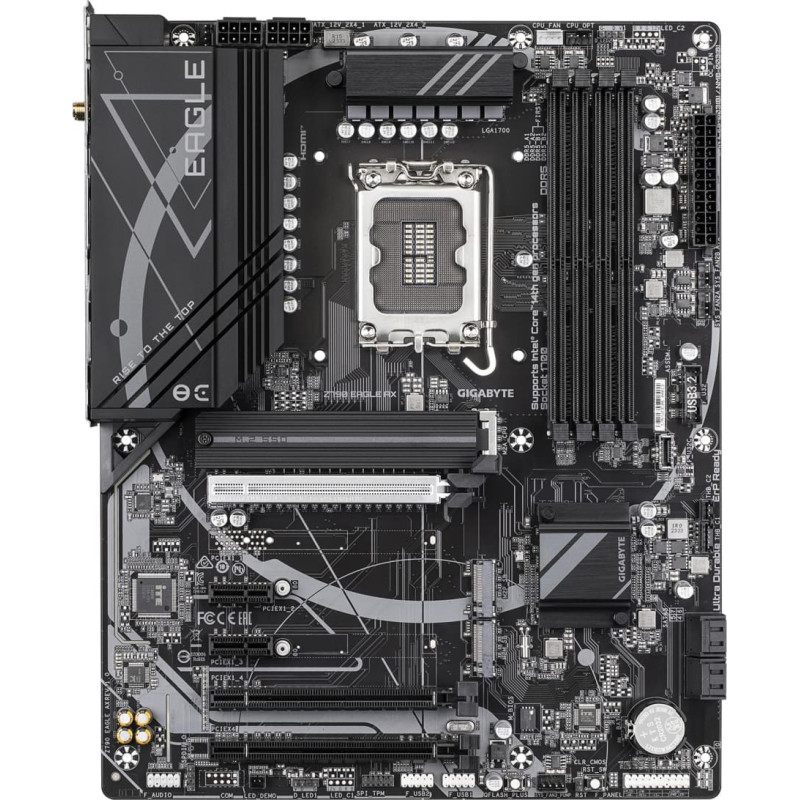

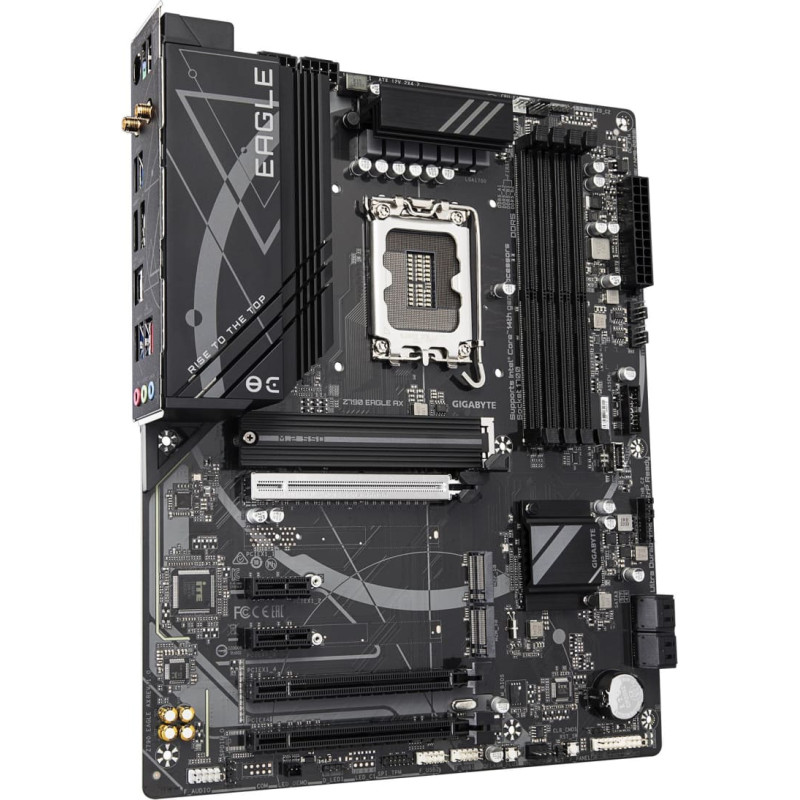

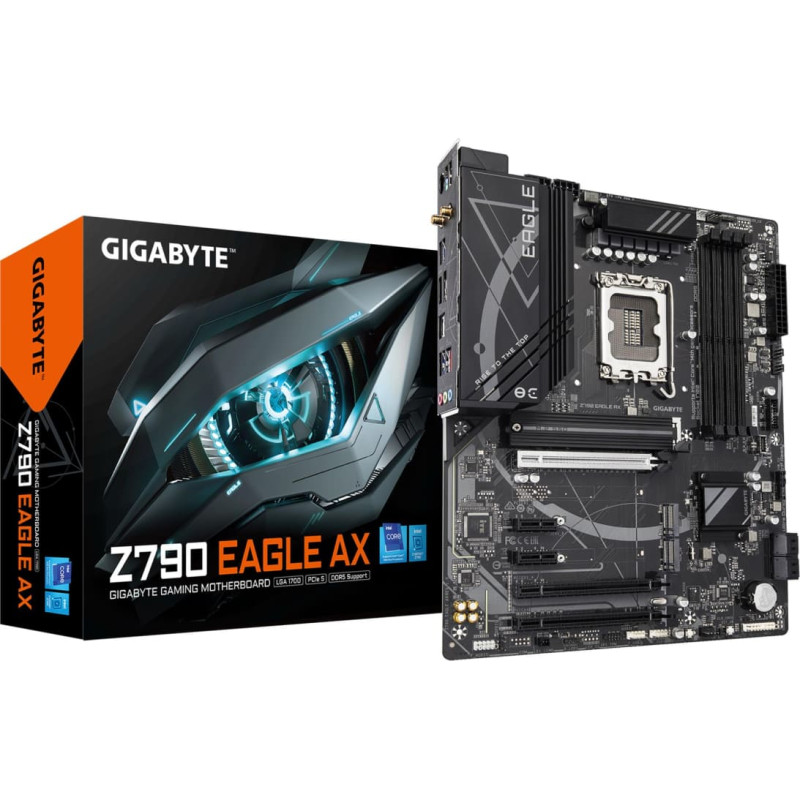

summary: GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
unit box height: 0.08
unit box length: 0.27
unit box width: 0.34
unit calculated volume: 0.009973 cubm
unit calculated weight: 1.84 kg
units per shipping box: 8
usb 2.0 ports quantity: 2
usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
usb connector type: USB Type-A/USB Type-C
warranty period: 3 year(s)
wi-fi: Yes
wi-fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
width: 305 mm
windows operating systems supported: Windows 10 x64/Windows 11 x64
