bracket height: Full-Height (FH)
category code: VGP
cncode: 84718000
cooling technology: GIGABYTE WINDFORCE 3X
cooling type: Active
cuda: Yes
cuda cores: 8960
data transfer rate: 28 Gbit/s
depth: 50 mm
directx version: 12.0
discrete graphics card memory: 16 GB
displayport version: 2.1b
displayports quantity: 3
dual link dvi: No
fan diameter: 80 mm
form factor: Full-Height/Full-Length (FH/FL)
graphics card memory type: GDDR7
graphics processor: GeForce RTX 5070 Ti
graphics processor family: NVIDIA
hdmi ports quantity: 1
hdmi version: 2.1b
height: 126 mm
interface type: PCI Express 5.0
length: 261 mm
manual: Yes
maximum displays per videocard: 4
maximum resolution: 7680 x 4320 pixels
memory bus: 256 bit
memory clock speed: 28000 MHz
minimum system power supply: 750 W
number of fans: 3 fan(s)
Number of pipelines: 8
opengl version: 4.6
overclocked (oc) edition: Yes
package depth: 322 mm
package height: 75 mm
package type: Box
package weight: 1529 g
package width: 214 mm
parallel processing technology support: Not supported
processor frequency: 2497 MHz
product colour: Black
product net weight: 0.93 kg

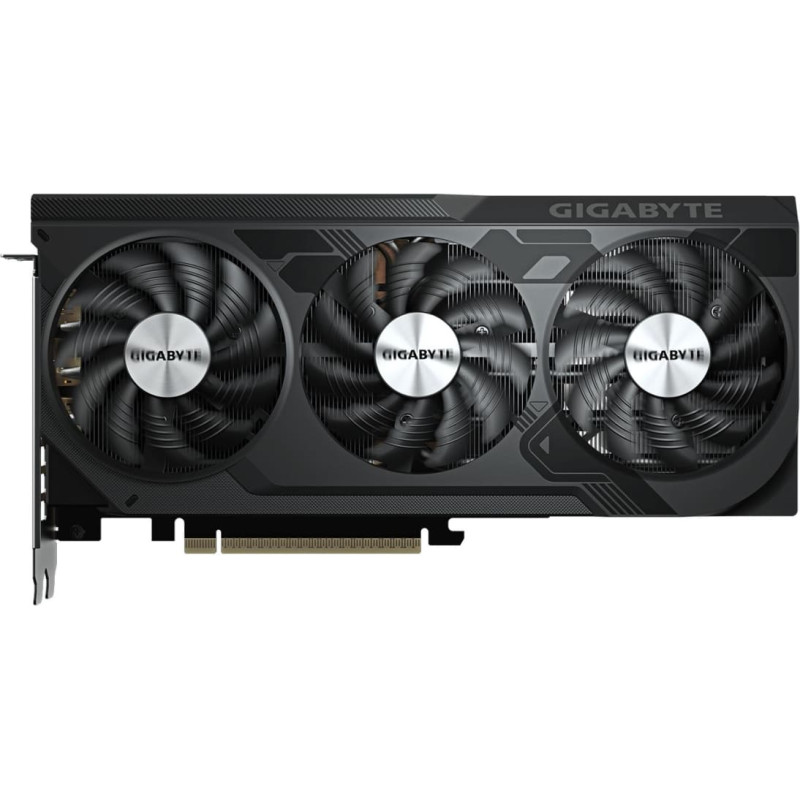

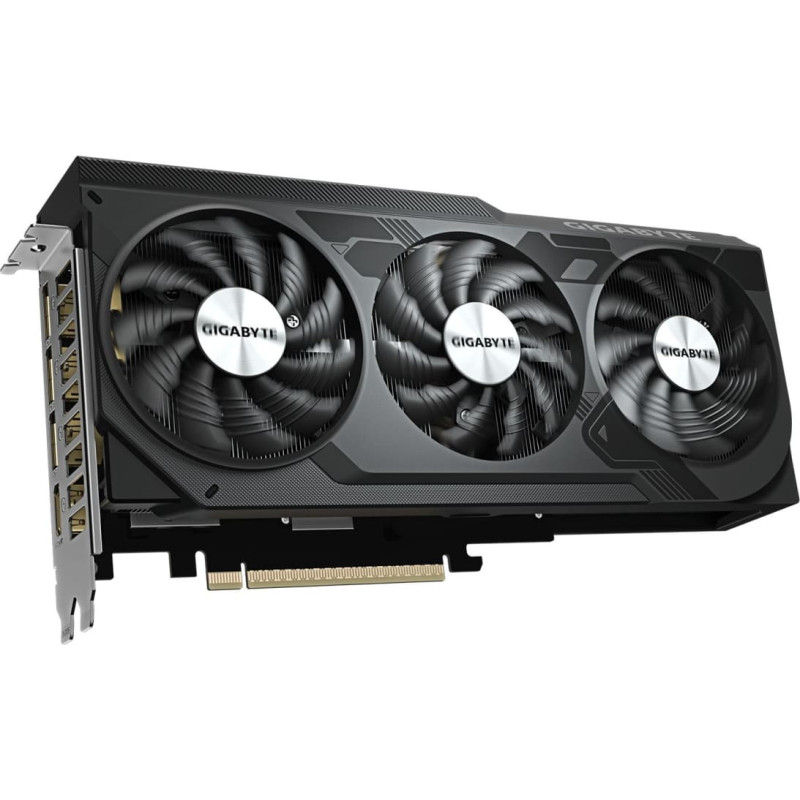

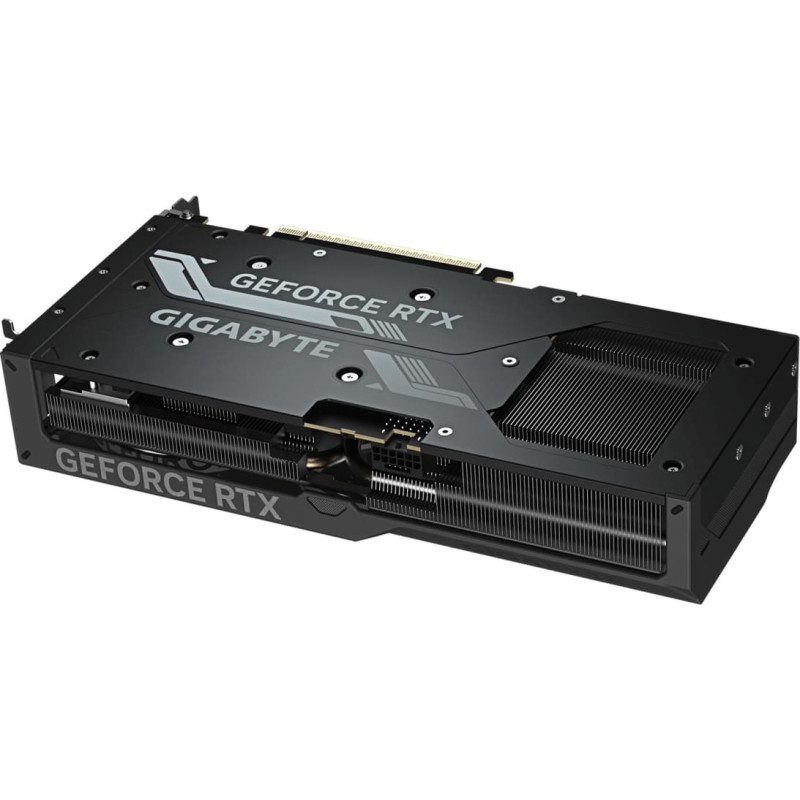

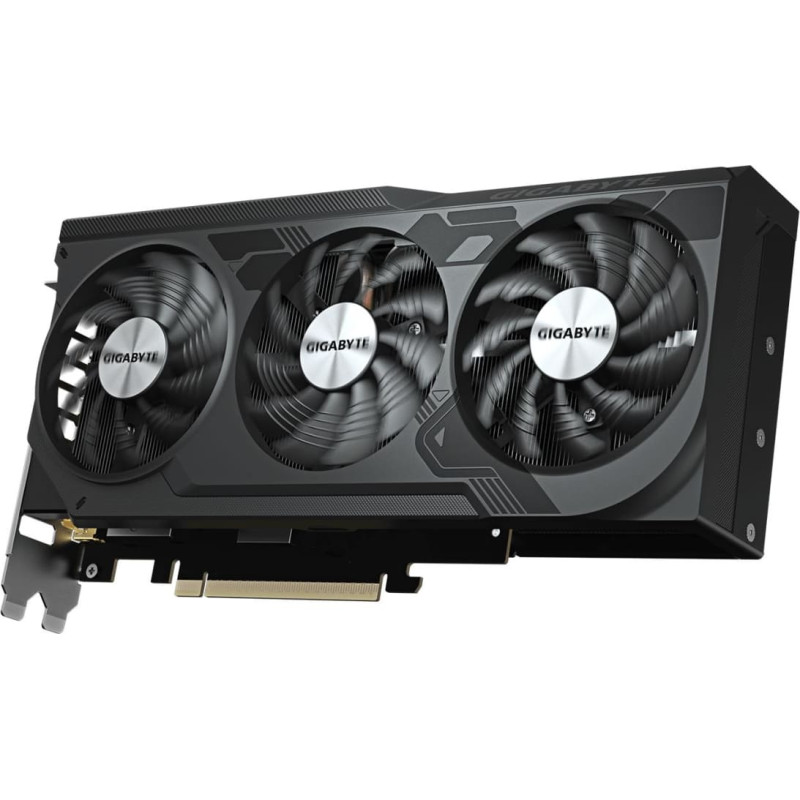

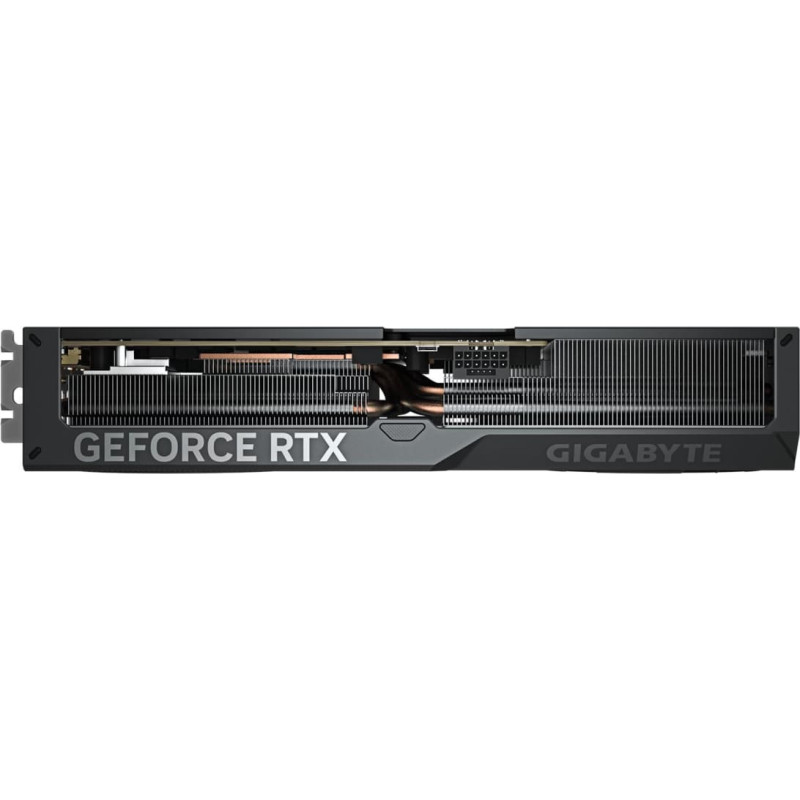

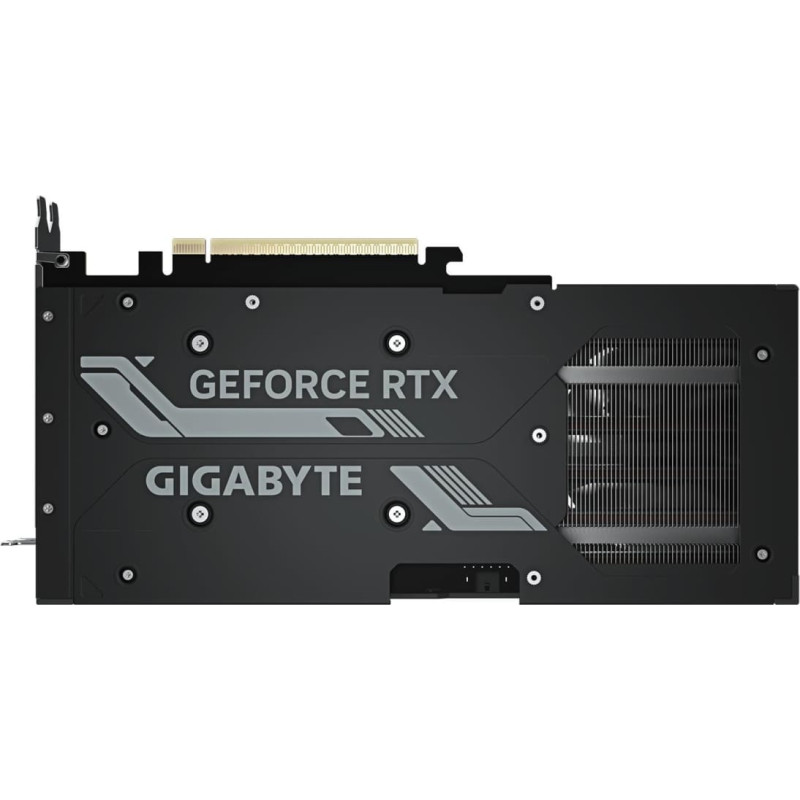

summary: GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC V2 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 2497 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N507TWF3OCV2-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti, Processor frequency: 2497 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
supplementary power connectors: 1x 16-pin
tv tuner integrated: No
unit box height: 0.225
unit box length: 0.335
unit box width: 0.085
unit calculated volume: 0.006859 cubm
unit calculated weight: 1.53 kg
units per shipping box: 10
virtual reality (vr) ready: Yes
warranty period: 3 year(s)
weight: 930 g
windows operating systems supported: Windows 10 x64/Windows 11 x64
