category code: VGP
cncode: 84718000
cooling type: Active
cuda: No
depth: 44 mm
directx version: 12 Ultimate
discrete graphics card memory: 12 GB
displayport version: 2.1
displayports quantity: 3
dual link dvi: No
graphics card memory type: GDDR6
graphics processor: Arc B580
graphics processor family: Intel

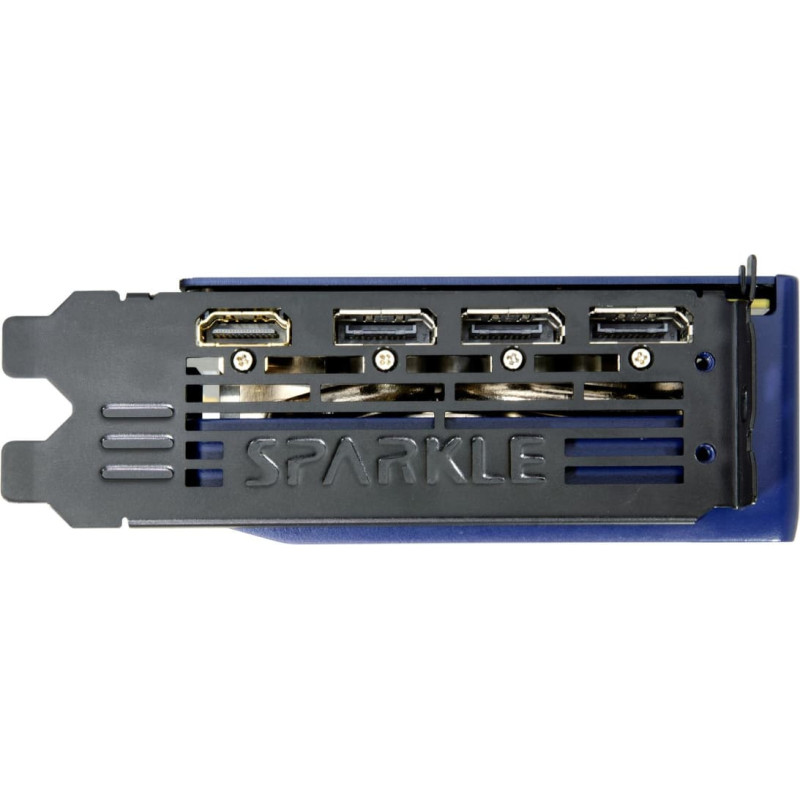

hdmi: Yes
hdmi ports quantity: 1
hdmi version: 2.1
height: 117 mm
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 160
interface type: PCI Express x8 4.0
length: 315 mm
maximum displays per videocard: 4
maximum resolution: 7680 x 4320 pixels
memory bandwidth (max): 456 GB/s
memory bus: 192 bit
Minimum processor: 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
Minimum RAM: 8000 MB
minimum system power supply: 600 W
Minimum system requirements: PCI-Express compliant MB with one x16 PCIe slot

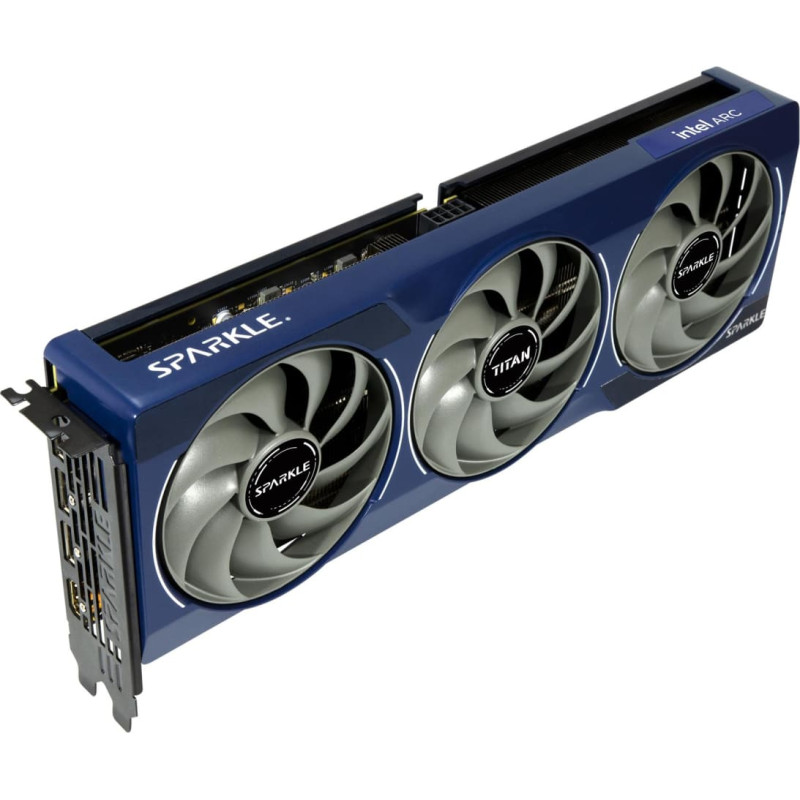

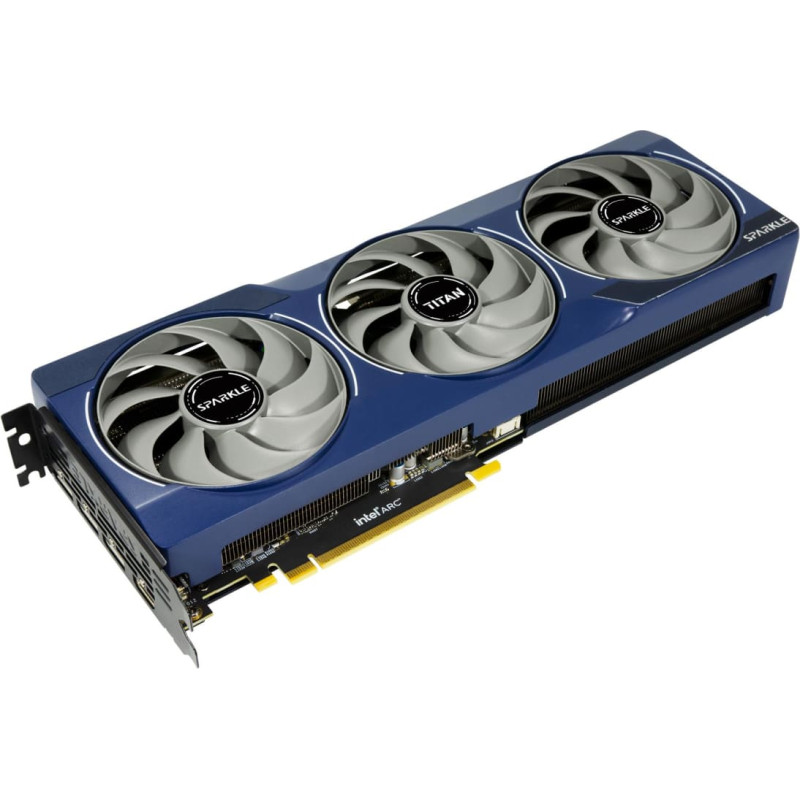

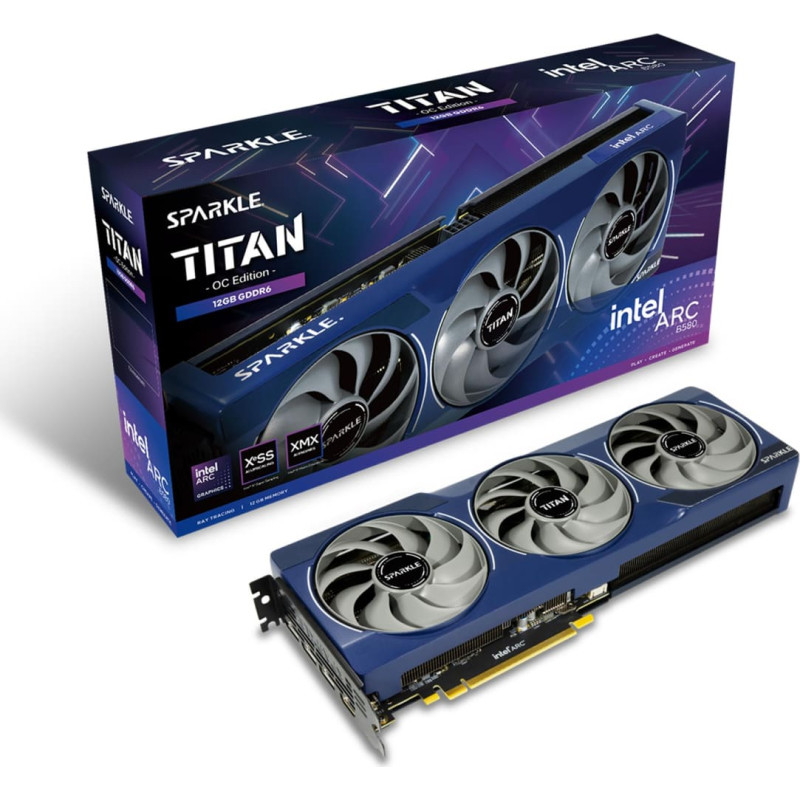

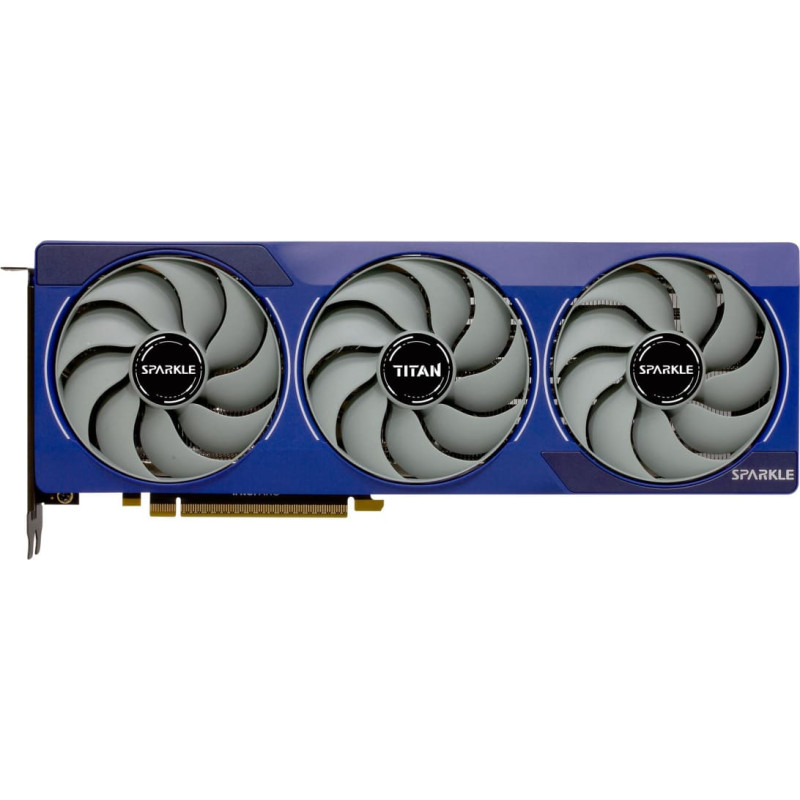

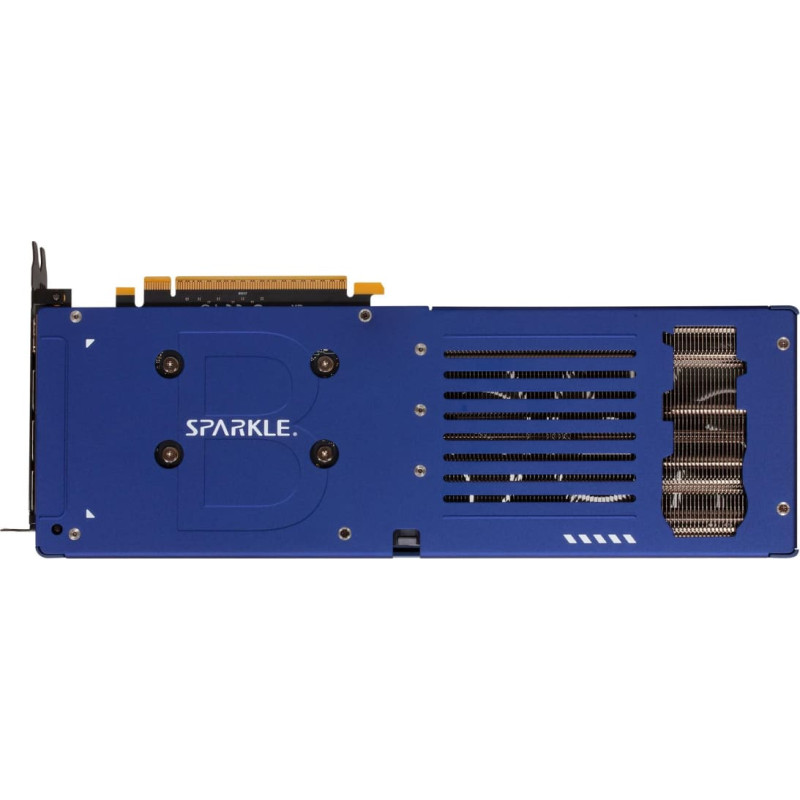

model: SPARKLE Intel Arc B580 TITAN OC
npu performance up to: 233 TOPs
number of fans: 3 fan(s)
number of slots: 2.2
OpenCL version: 3.0
opengl version: 4.6
package type: Box
parallel processing technology support: Not supported
power consumption (typical): 200 W
Power supply location: Top
processor frequency: 2740 MHz
product colour: Blue
product net weight: 0.954 kg
Ray accelerators: 20
summary: Sparkle Technology Intel Arc B580 TITAN OC. Graphics processor family: Intel, Graphics processor: Arc B580, Processor frequency: 2740 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
supplementary power connectors: 1x 8-pin
tv tuner integrated: No
unit box height: 0.075
unit box length: 0.385
unit box width: 0.195
unit calculated volume: 0.006391 cubm
unit calculated weight: 1.71 kg
units per shipping box: 10
weight: 954 g
windows operating systems supported: Windows 10/Windows 11
Xe-cores: 20
