Angle of rotation: 360 °
bluetooth: No
Built-in microphone: Yes
category code: HSC
certification: CE (EN55032:2015, EN 61000-3-2:2014, EN
61000-3-3:2013, EN55024:2010+A1:2015, EN
55035:2017, EN50130-4:2011+A1:2014, EN 62368-
1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
cncode: 85258900
connectivity technology: Wired
diameter: 121.9 mm
ethernet lan: No
form factor: Turret
Frame rate: 30 fps
height: 99.1 mm
maximum aperture number: 1.6
maximum resolution: 2880 x 1620 pixels
Mounting type: Ceiling/Wall/Pole
Night vision: Yes
noise reduction: Yes
number of cameras: 1
operating relative humidity (h-h): 0 - 95 %
operating temperature (t-t): -40 - 60 °C
package weight: 730 g
Pan range: 0 - 360 °
power consumption (typical): 5.9 W
power source type: DC
product colour: White
sensor type: CMOS
Signal-to-Noise Ratio (SNR): 65 dB
Storage relative humidity (H-H): 0 - 95 %
storage temperature (t-t): -40 - 60 °C

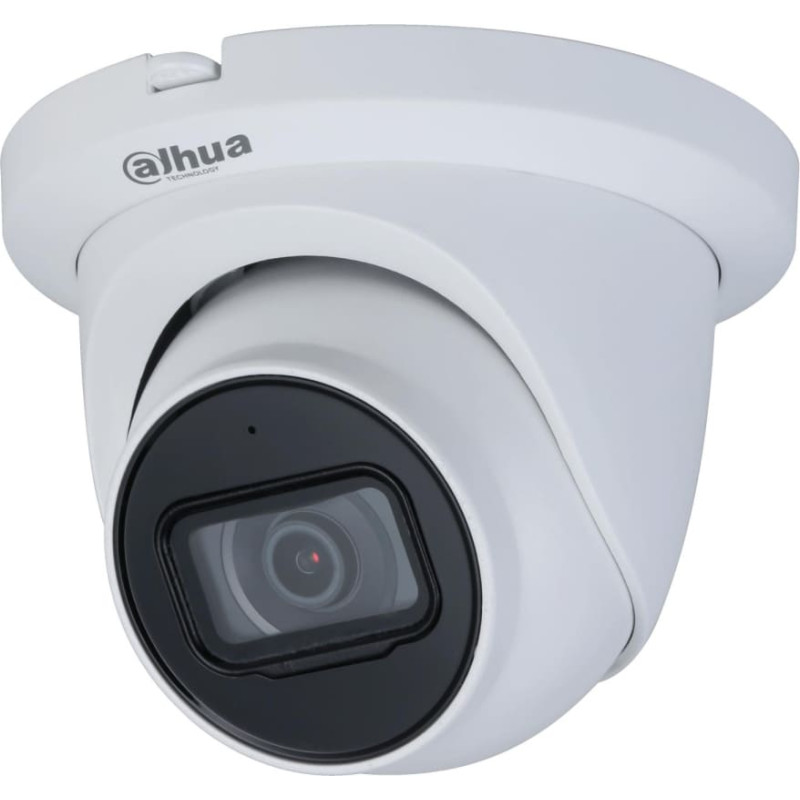

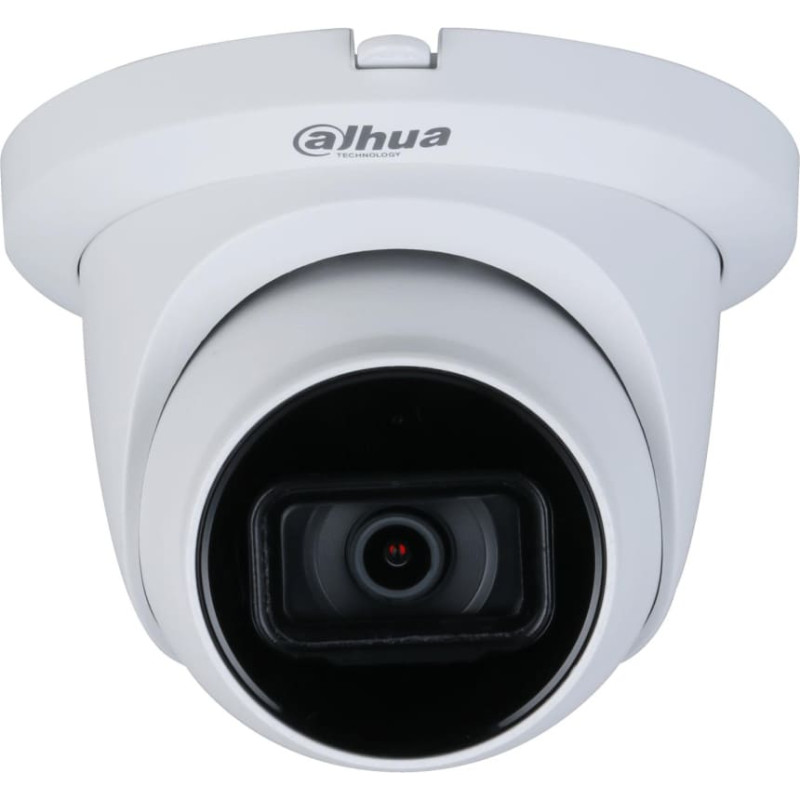

summary: Dahua Technology Pro HAC-HDW2501TMQ-A-0280B-S2. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 132°, Lens viewing angle, vertical: 111°. Sensor type: CMOS. Fixed focal length: 2.8 mm, Detect distance (wide): 63.6 m, Observe distance (wide): 25.4 m
supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
supported video modes: 1440p/1620p/480p/576p
tilt angle range: 0 - 78 °
type: CCTV security camera
unit calculated volume: 0.002018 cubm
unit calculated weight: 0.65 kg
weight: 540 g
wi-fi: No
wide dynamic range (wdr): Yes
