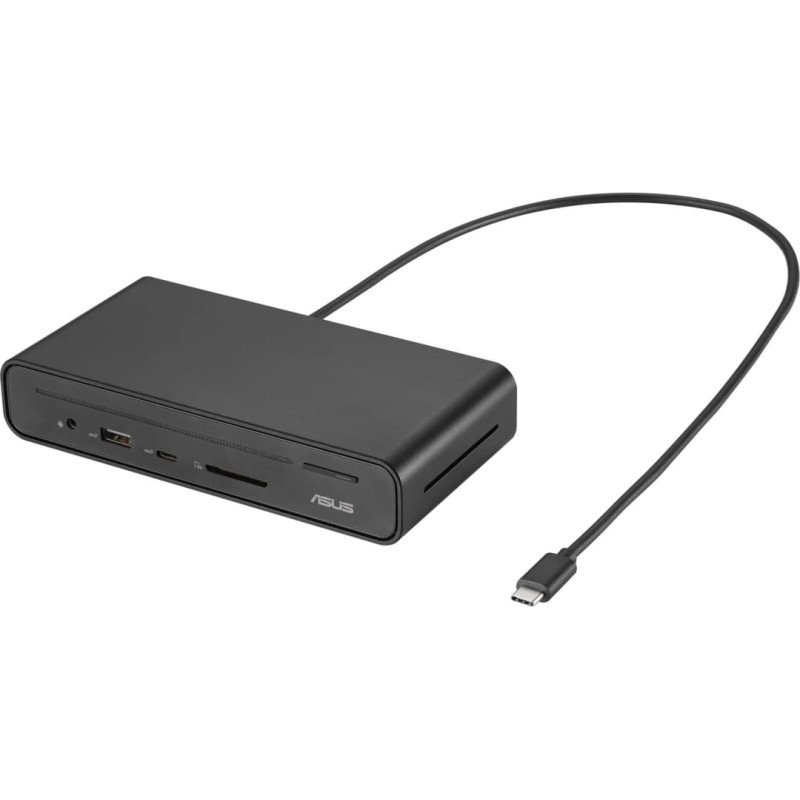

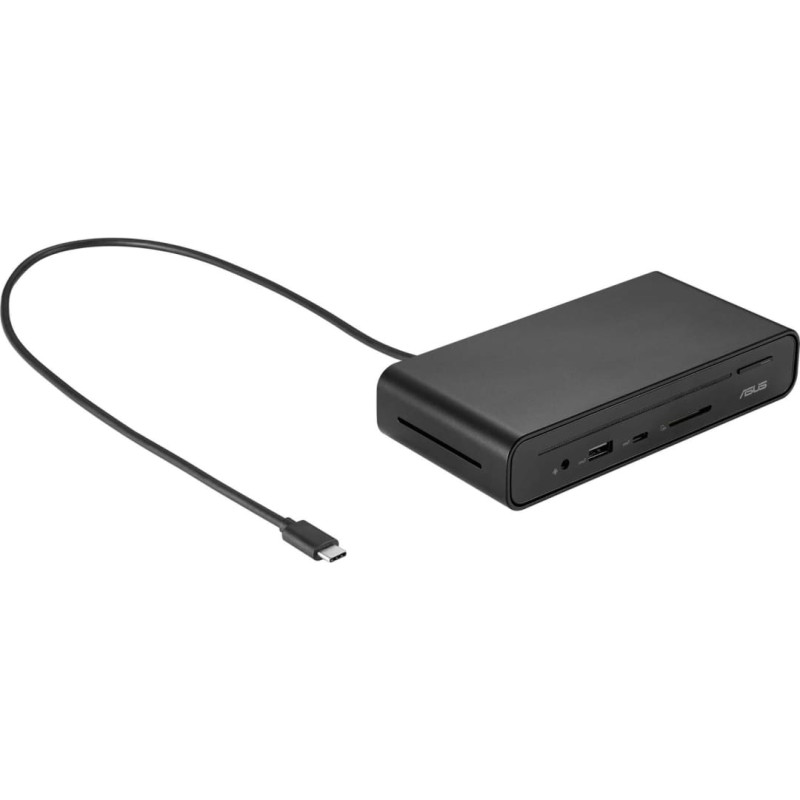

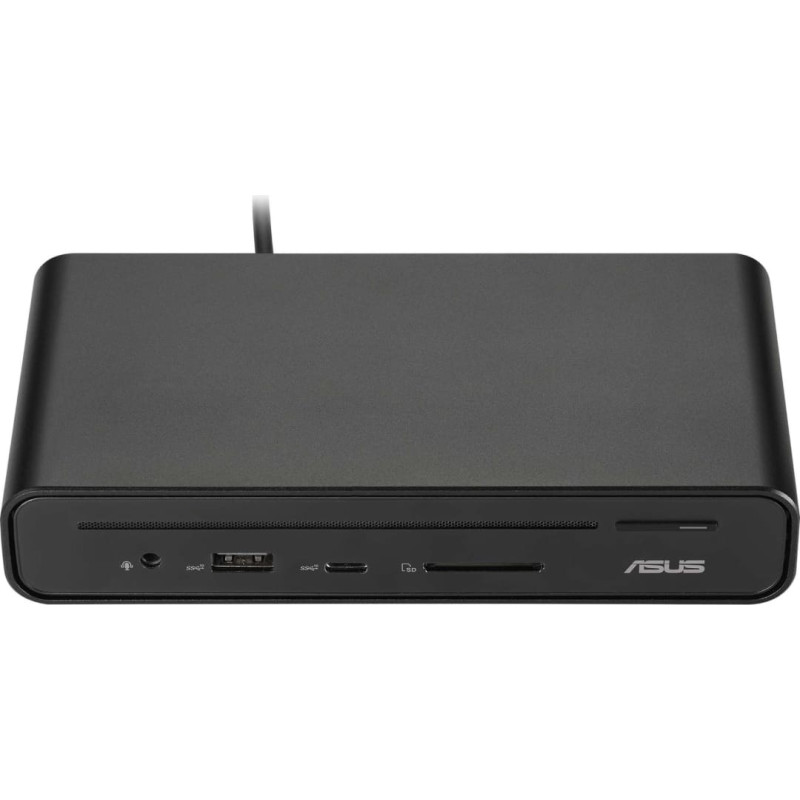

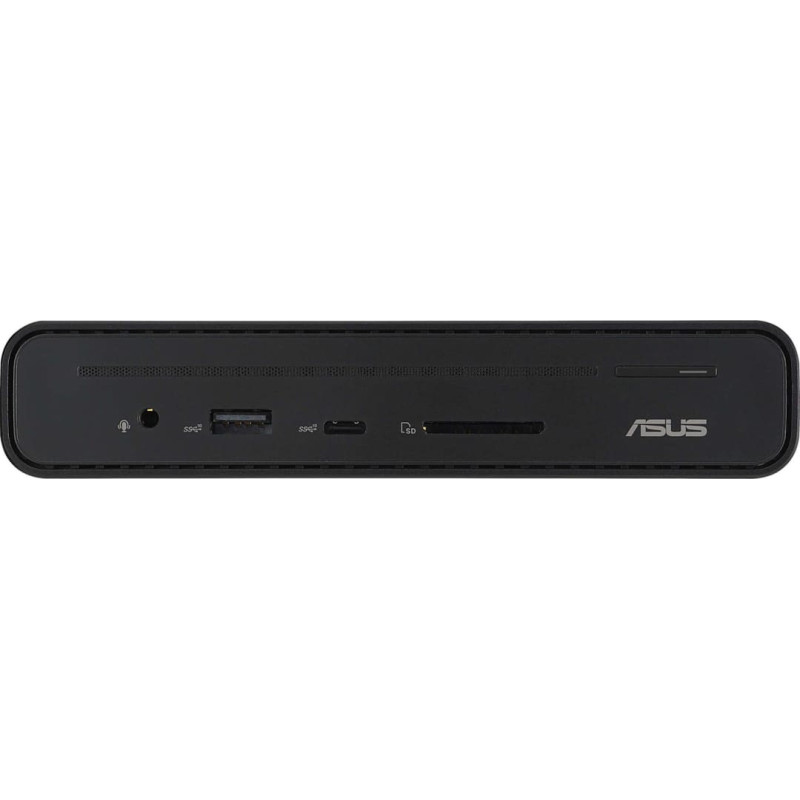

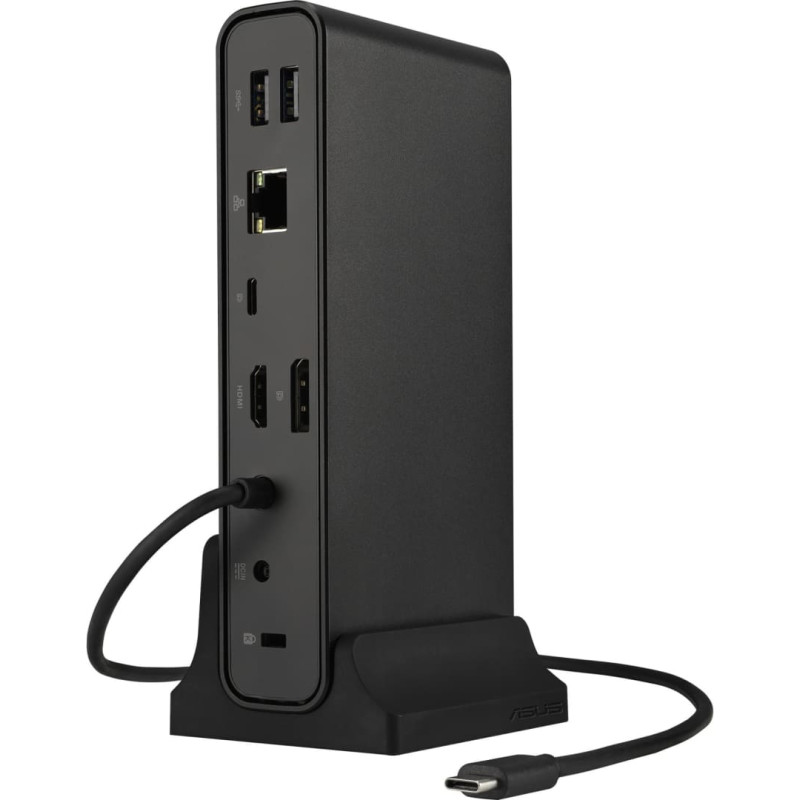

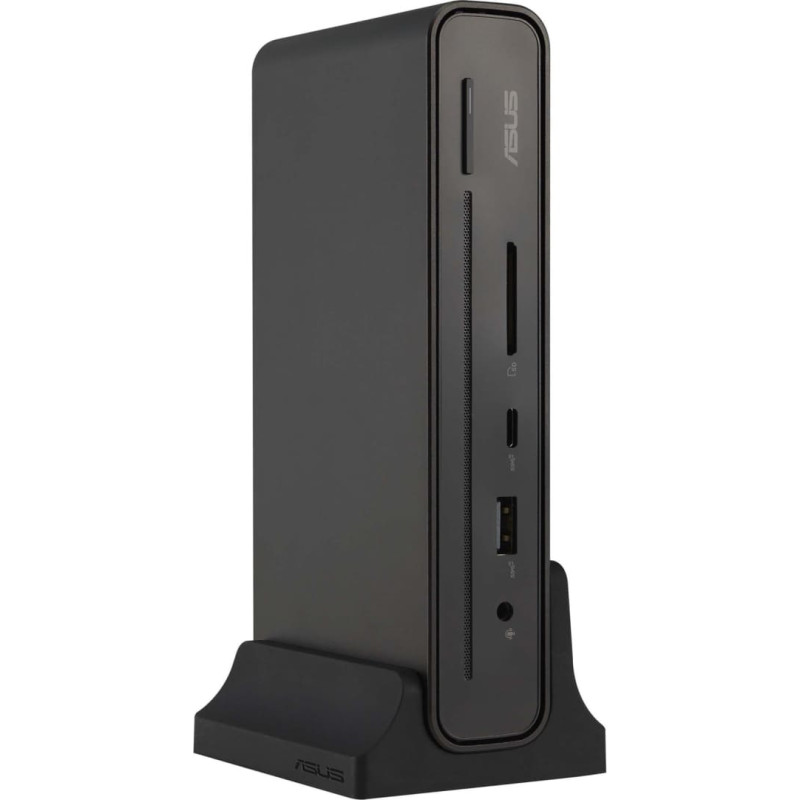

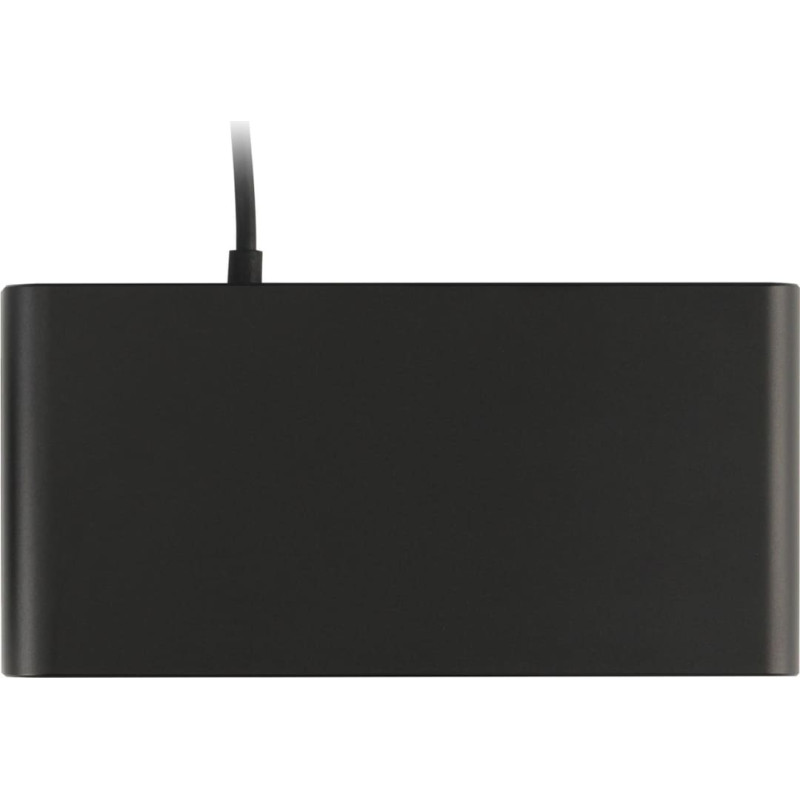

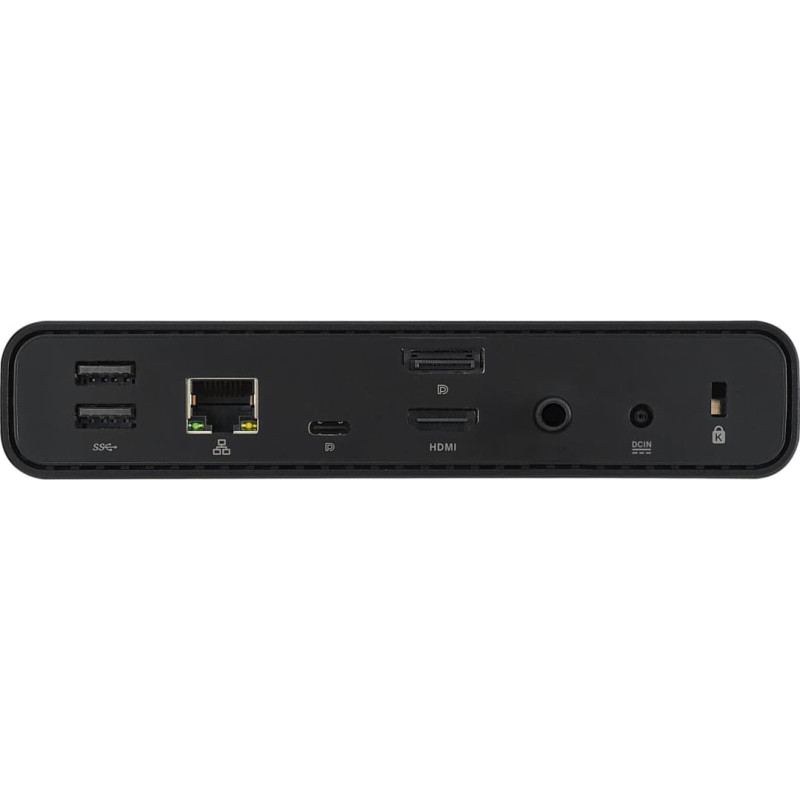

Asus NB ACC DOCK DC300 TRIPLE DISPL/USB-C 90XB08CN-BDS090 ASUS

ac adapter included: Yes

cable lock slot: Yes

cable lock slot type: Kensington

cables included: AC

Card reader integrated: Yes

category code: NBK

cncode: 84733080

Combo headphone/mic port: Yes

compatible memory cards: SD

connectivity technology: Docking

dc-in jack: Yes

depth: 80 mm

Disclaimer: 1. ASUS Triple Display USB-C Dock DC300 support varies by the processor and graphics capabilities of the connected laptop. Please check specifications for full details.
2. Video output may vary by input signal. ASUS Triple Display USB-C Dock DC300 supports up to one 4K display for a laptop which supports DSC (Display Stream Compression). When the DSC (Display Stream Compression) standard of your device and monitor supports a compression ratio of 3:1, the dock supports a resolution of up to 4K@60Hz in dual display mode (USB-C® + HDMI™ 2.0 or USB-C® + DisplayPort 1.4) and supports up to 4K@30Hz in triple display mode.
3. ASUS Triple Display USB-C Dock DC300 is compatible with certain ASUS laptops as well as non-ASUS laptops. It works with laptops that support the industry-standard USB-C Alternate Mode or Thunderbolt protocols via the Type-C port.
4. Chart depicts expected transfer time for 4 GB of data. Real-world performance may vary.
5. ASUS Triple Display USB-C Dock DC300 supports additional features, such as MAC address passthrough, WOL, multiple display support and mirrored power button, on many ASUS laptops and displays. Some features may not be available on certain ASUS laptops, ASUS Chromebook, or non-ASUS laptops. Please find tech spec for compatible device.

displayport version: 1.4

displayports quantity: 1

ethernet lan: Yes

ethernet lan (rj-45) ports: 1

Ethernet LAN data rates: 10/100/1000 Mbit/s

hdmi ports quantity: 1

hdmi version: 2.0

height: 32 mm

housing material: Metal/Plastic

mac operating systems supported: Yes

manual: Yes

maximum refresh rate: 60 Hz

microphone in: No

on/off switch: Yes

other operating systems supported: ChromeOS

output current: 7.5 A

output voltage: 20 V

power source type: DC,USB

power supply: 150 W

product colour: Black

quantity per pack: 1 pc(s)

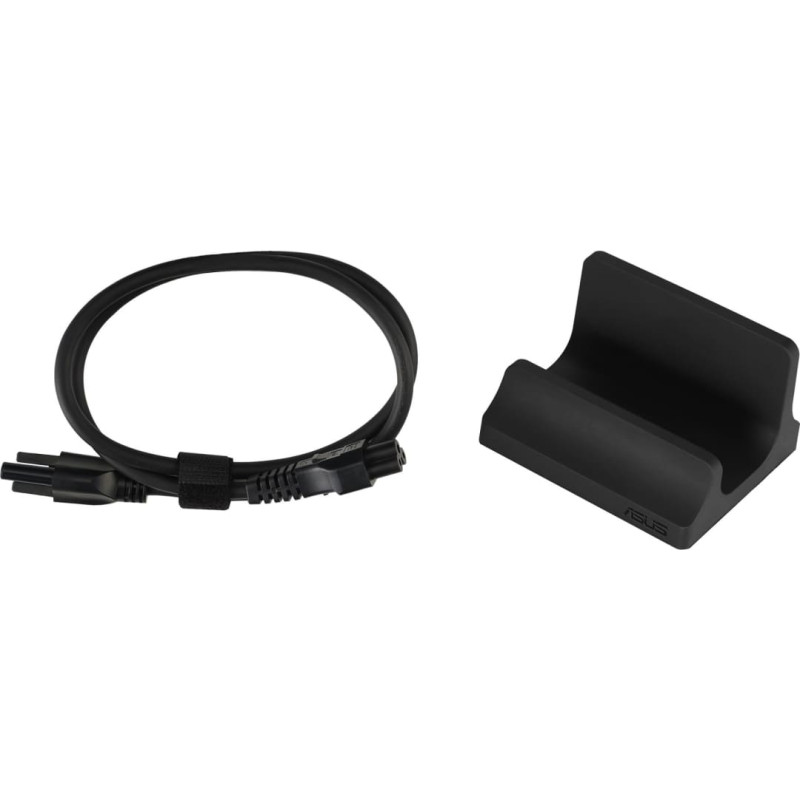

stand included: Yes

summary: ASUS Triple Display USB-C Dock DC300. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, USB, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Other operating systems supported: ChromeOS

unit calculated volume: 0.003663 cubm

unit calculated weight: 1.48 kg

usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB cable length: 0.6 m

usb power delivery (usb pd): Yes

usb power delivery up to: 90 W

usb type-c displayport alternate mode: Yes

Warranty card: Yes

weight: 514 g

width: 160 mm

windows operating systems supported: Windows 10/Windows 11/Windows 7/Windows 8/Windows 8.1
