ac input frequency: 50/60 Hz
ac input voltage: 100 - 240 V
cables included: LAN (RJ-45)
category code: SWI
certification: CE, FCC, RoHS
cncode: 85176200
compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
depth: 180 mm
form factor: 1U
forwarding rate: 148.8 Mpps
Heat dissipation: 154.38 BTU/h
height: 44 mm
led indicators: Yes
model name: TL-SG3428X-M2
number of fans: 1 fan(s)
operating relative humidity (h-h): 10 - 90 %
operating temperature (t-t): 0 - 40 °C
power consumption (max): 45.1 W
power source: AC
Power supply included: Yes
product colour: Black
quick start guide: Yes
series: OMADA
Storage relative humidity (H-H): 5 - 90 %
storage temperature (t-t): -40 - 70 °C
switch type: Managed
switching capacity: 200 Gbit/s
unit box height: 0.255
unit box length: 0.53
unit box width: 0.085
unit calculated volume: 0.01149 cubm
unit calculated weight: 3.06 kg
units per shipping box: 1
width: 440 mm
Description

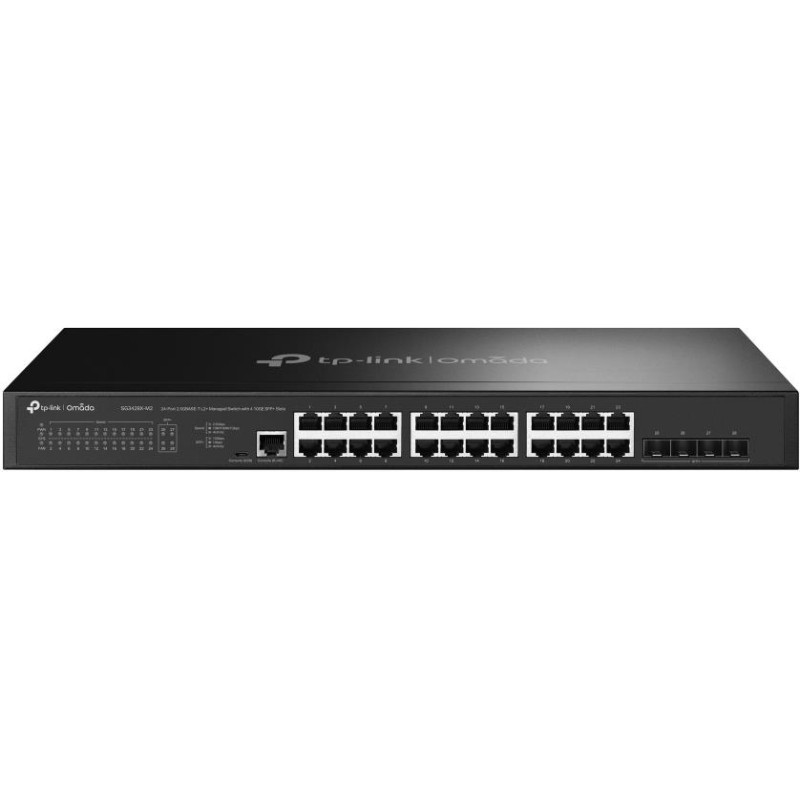

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 24× 2.5 Gbps RJ45 ports
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 200 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Manufacturer Website:https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428x-m2/#specifications
