Home PC Components Cases & PSU Cases Chieftec Case|CHIEFTEC|APEX AIR|MidiTower|Not included|ATX|MicroATX|MiniITX|Colour Black|GA-01B-M-OP
Chieftec Case|CHIEFTEC|APEX AIR|MidiTower|Not included|ATX|MicroATX|MiniITX|Colour Black|GA-01B-M-OP

CHIEFTEC

Chieftec Case|CHIEFTEC|APEX AIR|MidiTower|Not included|ATX|MicroATX|MiniITX|Colour Black|GA-01B-M-OP

Availability: In Stock Availability 50
ID: 40191
Product Code: GA-01B-M-OP
Barcode 0753263078537
58.12€
(Ex Tax: 48.04€)
Payment options

Delivery options



Specification
Description
Related products
Specification
Anti-dust filter: Yes
audio input: Yes
audio output: Yes
Bottom fans diameters supported: 120 mm
Cable management: Yes
category code: CAS
cncode: 84733080
depth: 465 mm
form factor: Midi Tower
Front fans diameters supported: 120/140 mm
Front fans installed: 2x 140 mm
Front radiator sizes supported: 240/280/360/420 mm
Full-Height expansion slots: 7
height: 495 mm
illumination: No
Liquid cooling capability: Yes
material: SPCC
Material thickness: 0.6 mm
Maximum CPU cooler height: 175 mm
Maximum graphics card length: 400 mm
Maximum PSU length: 220 mm
model: GA-01B-M-OP
model name: APEX AIR
Number of 2.5" bays: 2
Number of 3.5" bays: 2
Number of bottom fans supported (max): 2
number of expansion slots: 7
Number of front fans supported (max): 3
Number of internal 3.5" bays: 2
Number of rear fans supported (max): 1
Number of side fans supported (max): 2
Number of storage drives supported: 5
Number of top fans supported (max): 3
On/off button: Yes
package weight: 8750 g
Power supply included: No
Power supply location: Bottom
Power supply shroud: Yes
product colour: Black
Pulse-width modulation (PWM) support: Yes
Rear fans diameters supported: 120/140 mm
Rear fans installed: 1x 140 mm
Reset button: Yes
RGB control button: Yes
Side fans diameters supported: 120 mm
Side radiator sizes supported: 240 mm
Side window: Yes
Suitable for: Gaming
summary: Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm
Supported HDD sizes: 2.5/3.5 "
Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Top fans installed: 3x 120 mm, 2x 140 mm
Top radiator sizes supported: 240/280/360 mm
type: PC
unit box height: 0.535
unit box length: 0.555
unit box width: 0.295
unit calculated volume: 0.08759 cubm
unit calculated weight: 8.6 kg
units per shipping box: 1
usb 3.0: 2
usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
usb type-c ports quantity: 1
weight: 7300 g
width: 230 mm
Description

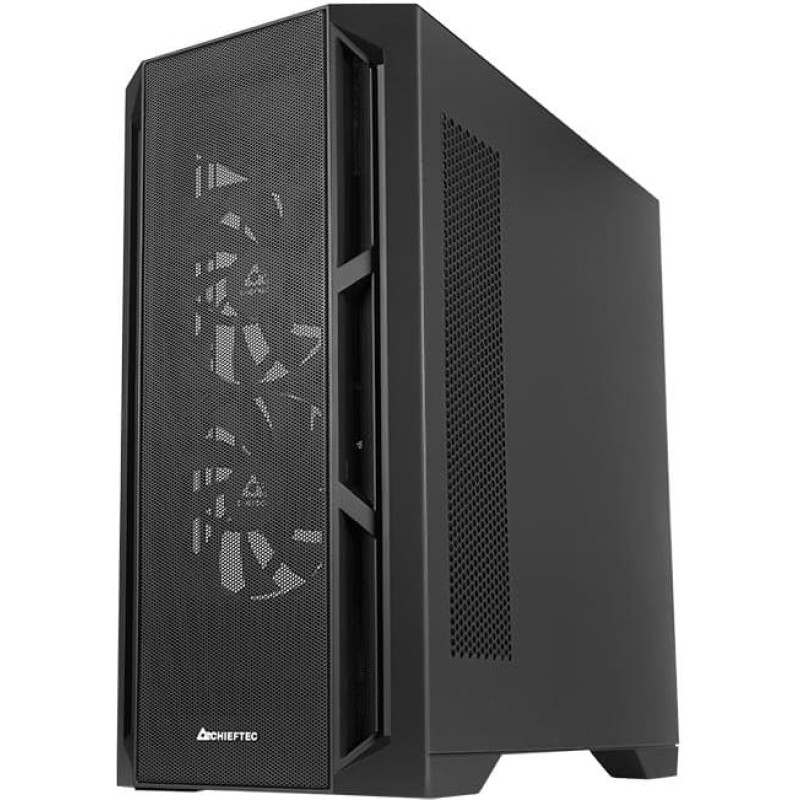

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.

The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.

CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.

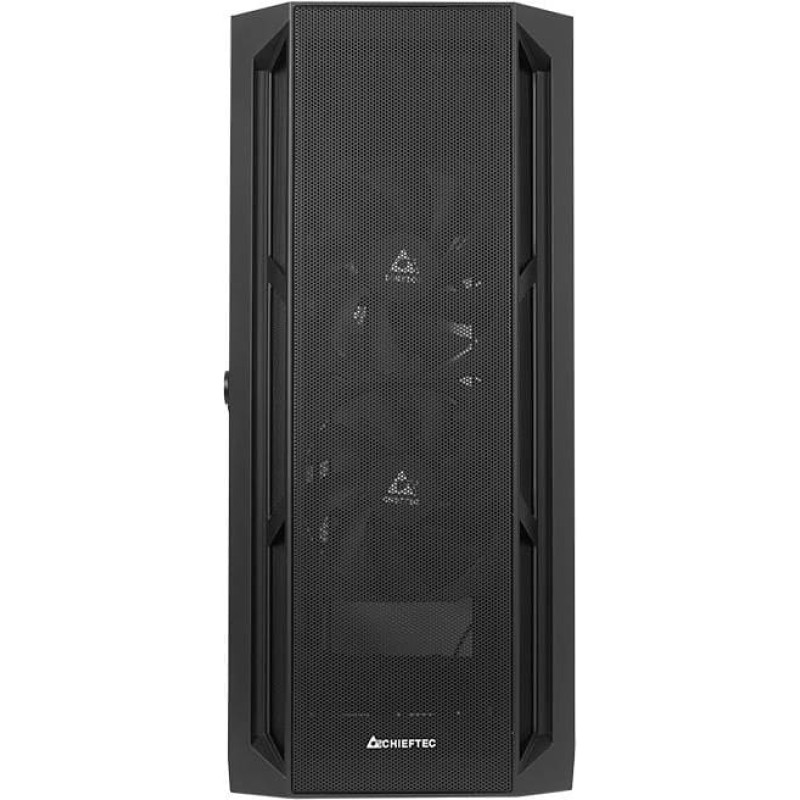

  • High-airflow optimized front mesh panel
  • Side panel made of TEMPERED GLASS
  • 3x 140mm PWM fans pre-installed



Manufacturer Website:
https://www.chieftec.eu/products-detail/570/GA-01B-M-OP
