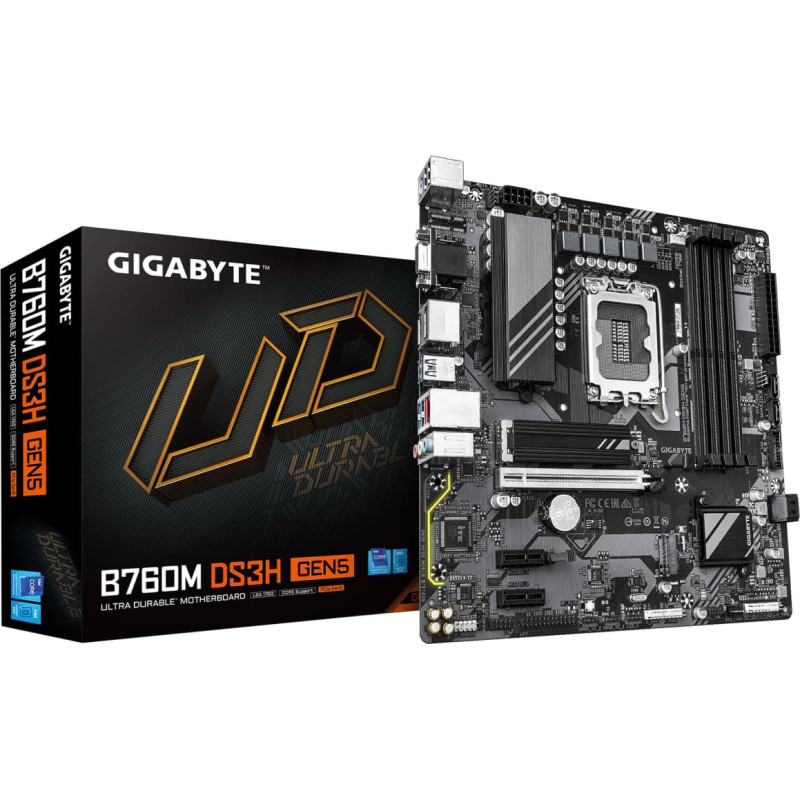

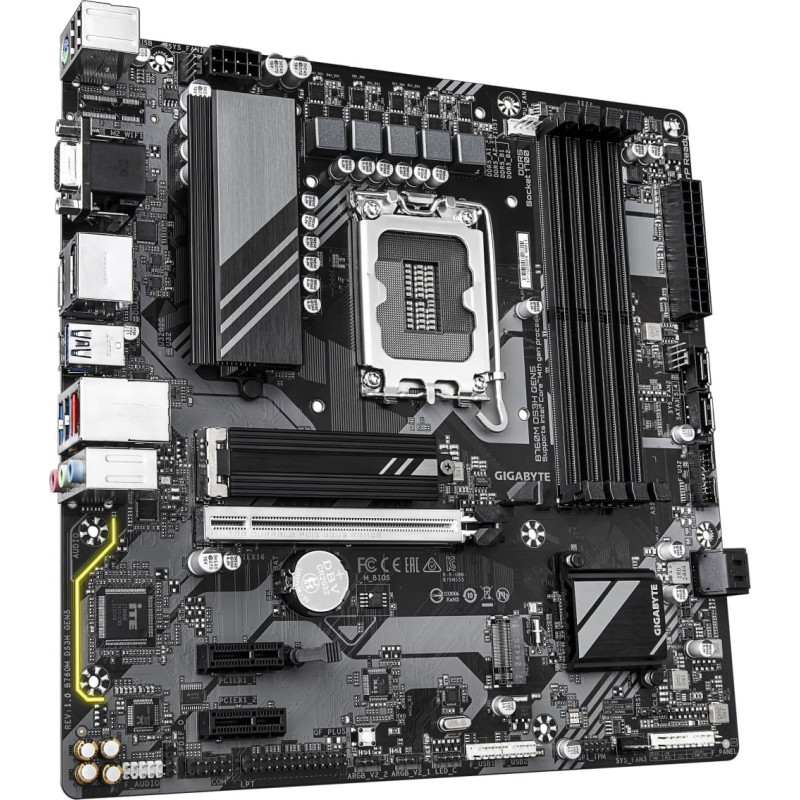

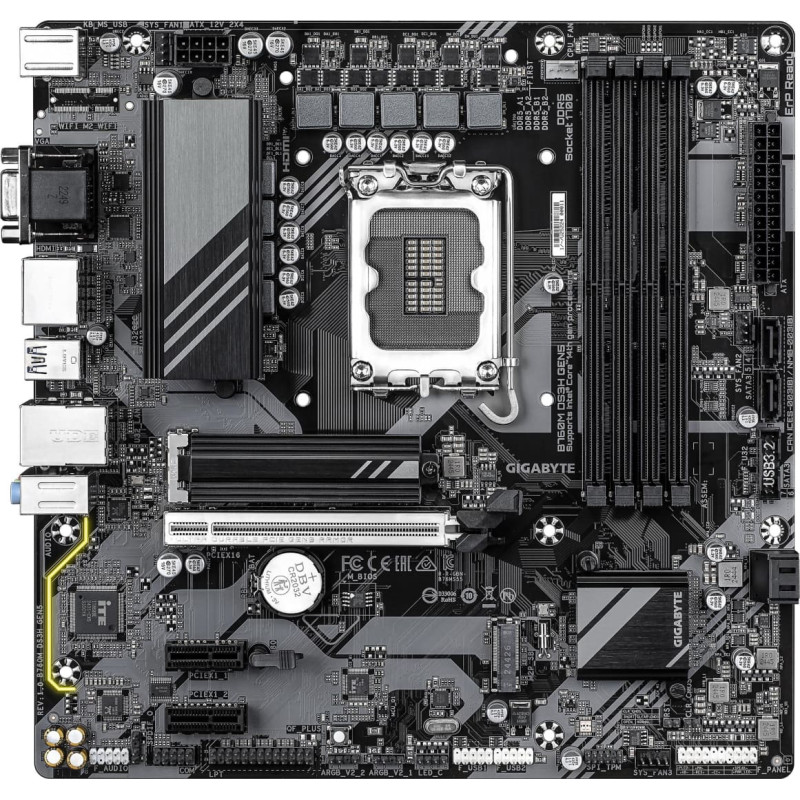

Home PC Components Mainboards Mainboards for Intel CPUs Gigabyte Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HGEN5
Gigabyte Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HGEN5

Gigabyte Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HGEN5

Availability: In Stock Availability 10
ID: 41267
Product Code: B760M DS3H GEN5
Barcode 4719331872793
Brand: GIGABYTE
112.55€
(Ex Tax: 93.02€)
Payment options

Delivery options



Specification
Description
Related products
Specification
15pin d-sub: 1
audio port: 3
category code: MBI
chipset: Intel B760 Express
cncode: 84733020
displayport: 1
form factor: Micro-ATX
frequency speed: 4400/4800/5200/5600 MHz
hdmi: 1
integrated audio: Yes
integrated lan: 2.5 Gigabit
integrated video: Depending on CPU
m.2: 2
memory slots: 4
memory type: DDR5
model: B760M DS3H GEN5
pci-express 3.0 1x: 2
pci-express 5.0 16x: 1
product net weight: 0.5 kg
ps/2: 1
raid: SATA 0, 1, 5, 10
rj45: 1
socket: LGA1700
tpm: Header
unit box height: 0.06
unit box length: 0.265
unit box width: 0.265
unit calculated volume: 0.004836 cubm
unit calculated weight: 1.04 kg
units per shipping box: 10
usb 2.0: 2
usb 3.2: 3
usb-c: 1
Description

B760M DS3H GEN5

PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th /12th processors
EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
Fast Networks : 2.5 GbE LAN
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

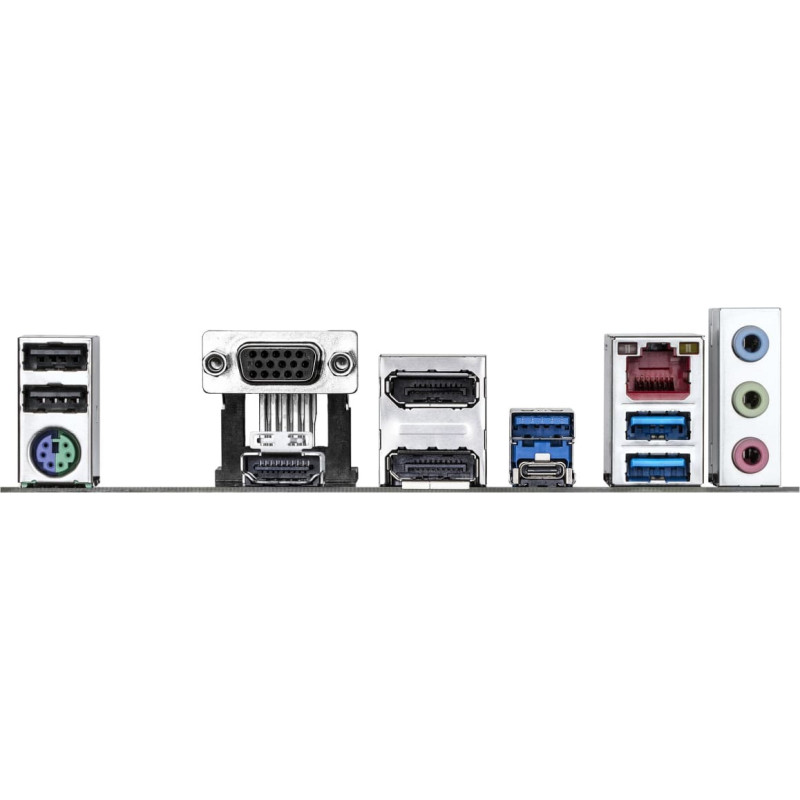

Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card



Manufacturer Website:
https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
