alarm in: 1
alarm out: 1
audio-in: 1
audio-out: 1
camera design: Bullet
category code: FNC
cncode: 85258900
colour: White
dimensions: 192.7 × 70.5 × 66.4mm
electronic shutter speed: Auto/Manual 1/3 s–1/100,000 s
environment: Outdoor
focal length: 2.8mm
ir illumination: Yes
lens mount: M12
microphone: Built-in
min. illumination: 0.0009 Lux

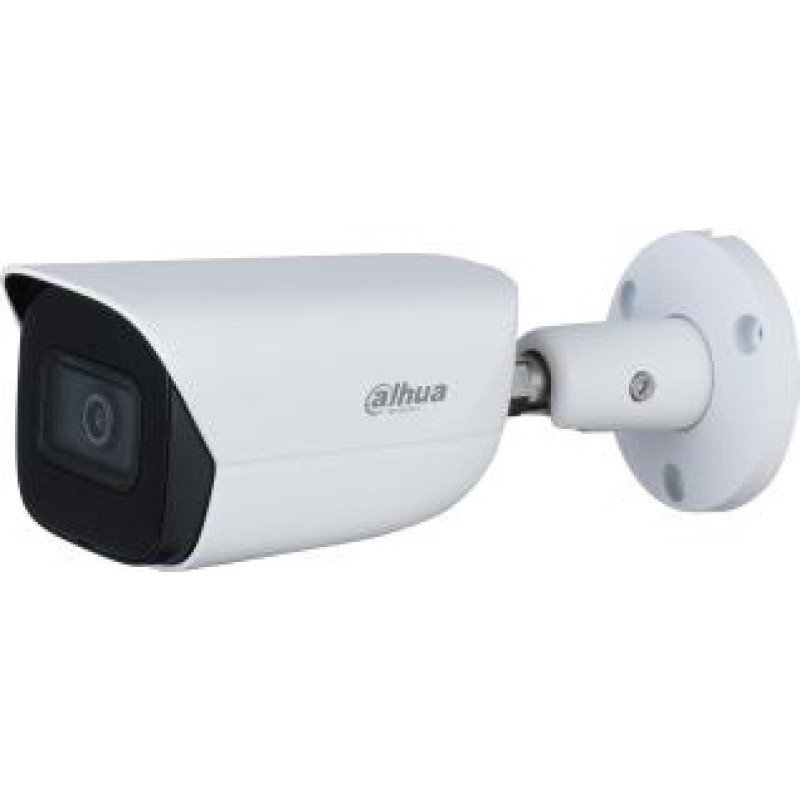

model: IPC-HFW5541E-ASE-0280B-S3
network camera type: HDTV/Megapixel/Outdoor
operating temperature range: -40°C~+60°C
power consumption: 6.8 Watts
power options: 12V/PoE
power supply requirements: 12 VDC/PoE (802.3af)/ePoE
product net weight: 0.59 kg
resolution: 5 Mega Pixel
rj45: 1
sensor size: 1/2.7”
supports card capacities up to: 256GB
unit box height: 0.1
unit box length: 0.22
unit box width: 0.115
unit calculated volume: 0.00253 cubm
unit calculated weight: 0.783 kg
units per shipping box: 1
Description
1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max
Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR
2.8 mm fixed lens (111° HFOV)
Up to 50 meters IR LED Illumination
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI
Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O
Micro SD card up to 256GB supported
Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.
Free IP monitoring software available
Manufacturer Website:https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ASE=S3
